3D Printing of Custom Trophy – “Toilet Trophy”

Client: Australian Event Organizer

Company: CADDeziners (caddeziners.com.au)

Background

CADDeziners, a prominent engineering and 3D printing service provider in Australia, was approached by a client seeking a unique, custom-designed trophy – the “Toilet Trophy.” This trophy was intended for an event and needed a creative design that would meet the client’s specifications while being cost-effective and visually appealing.

Project Requirements

• Custom Design: The trophy required a unique “toilet” design, which demanded creativity and precise modeling to capture the specific details.
• Material: The client specified white ABS resin as the desired material for the trophy, using SLA (Stereolithography) technology for smooth surface finishes.
• Post-Processing: The client requested additional finishing steps, including painting and polishing, to enhance the final appearance.

Process

1. Initial Consultation and Cost Estimation:

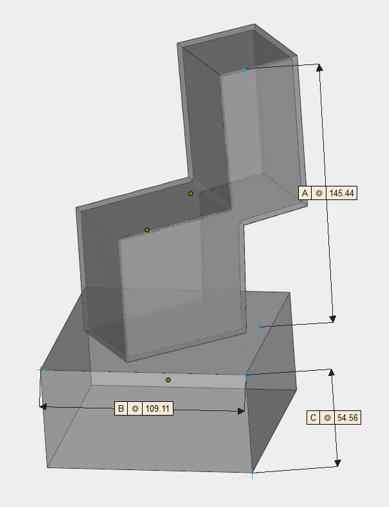

   • CADDeziners first created a mock-up design to provide the client with a visual representation of the trophy concept.
     1. • An initial cost estimate was generated based on the approximate size and materials needed, allowing the client to approve the project’s budget.
     2. Design Approval and Proportion Adjustments:

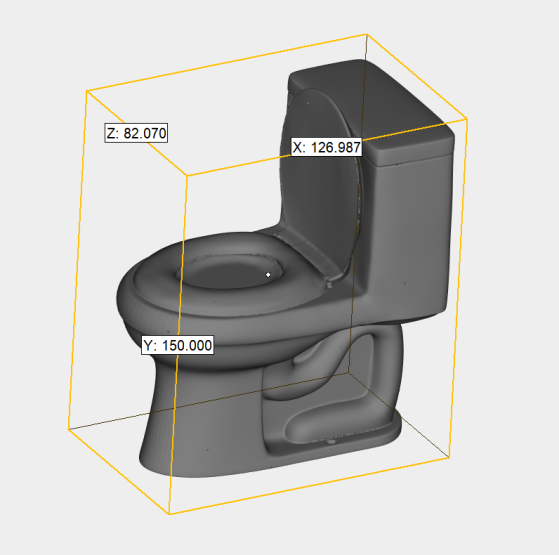

        • Once the client approved the mock-up design, CADDeziners proceeded to refine the 3D model. This involved adjusting proportions and adding detailed features as specified by the client.
     The final design was presented to the client along with an accurate cost estimate based on the updated design specifications.
   • • After receiving full approval from the client, CADDeziners moved forward with production.
   • 3D Printing in ABS Resin (SLA Technology):
     • Using SLA technology, CADDeziners printed the trophy in white ABS resin. This material was chosen for its durability and the smooth finish achievable through SLA.
     • The SLA process allowed for a high level of detail, making it ideal for the intricate features of the trophy design.
   • Post-Processing – Painting and Polishing:
     • Following the print, CADDeziners performed post-processing steps including painting and polishing as per the client’s requests.

       Challenges

       • Design Precision: Capturing the right proportions and features of a “toilet” in a trophy design required meticulous modeling work.
       • High-Quality Finish: Meeting the client’s specifications for a smooth, polished surface finish involved careful post-processing.

       Results

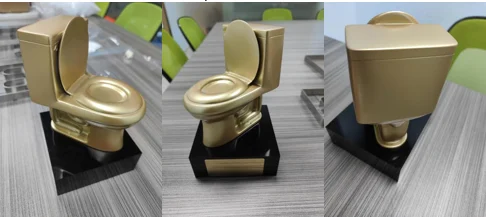

       • High-Quality Trophy: The finished trophy showcased a unique and professional look, with all the details as per the client’s requirements.
       • On-Time Delivery: Despite the custom design and extensive post-processing, CADDeziners delivered the trophy within the client’s timeline.
       • Client Satisfaction: The client was pleased with the final product, which received positive feedback at the event.

       Conclusion

       This project demonstrated CADDeziners’ expertise in custom 3D printing and their commitment to delivering high-quality, client-specific solutions. By providing end-to-end service—from initial design to final finishing—CADDeziners exceeded client expectations and delivered a trophy that was both functional and visually impactful.

       Looking Forward

       CADDeziners continues to support clients across industries with custom 3D printing solutions, using innovative design, advanced materials, and post-processing techniques to bring creative ideas to life.
